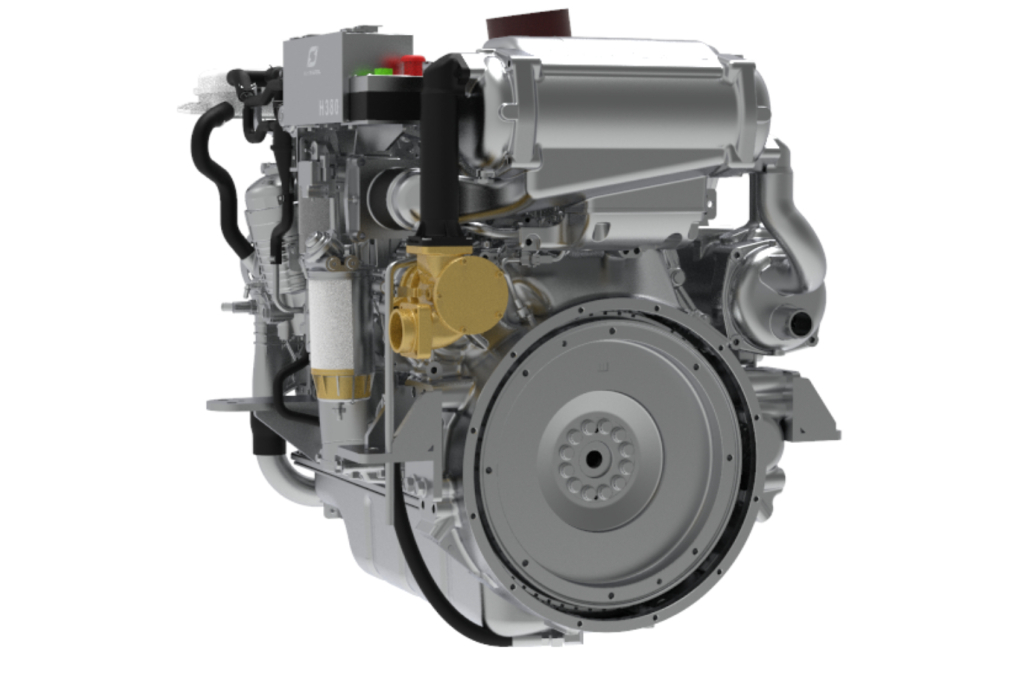

Hyundai SeasAll H380
Marine inboard engine
| Fuel type | Diesel |
|---|---|
| Number of strokes | 4 |
| Number of cylinders | 6 |
| Layout of cylinders | V type |
| Cylinder diameter | 122 mm |
| Cylinder stroke | 142 mm |
| Total displacement | 9960 cc |
| Compression ratio | 16:1 |
| Engine duty rating | S1 |
| Power | 380 HP |
| Power | 280 kW |
| Max RPM | 1800 RPM |
| Injection system | DUE DATE BANK TRANSFER |
| Intake system | Turbocharged with intercooler (VGT) |
| Down Angle | 12 º |
| Sea water hose inner diameter | 51 mm |
| Fuel feeding hose inner diameter | 10 mm |
| Fuel return hose inner diameter | 10 mm |
| Certifications and emissions | EU: RCD II (DIR. 2013/53/EU) , RINA |
